Tutorial

How to run the cmdbox sample project in VSCode

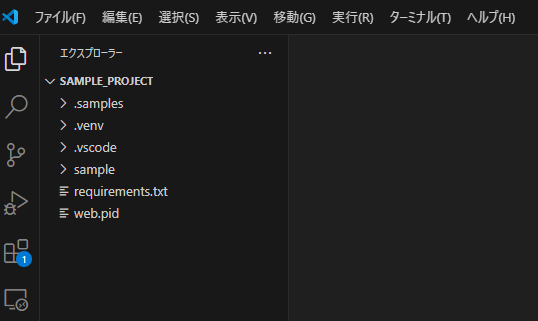

  • Open the .sample/sample_project folder in the current directory with VSCode.

'image'

  • Install dependent libraries.

python -m venv .venv
. .venv/bin/activate
pip install -r requirements.txt

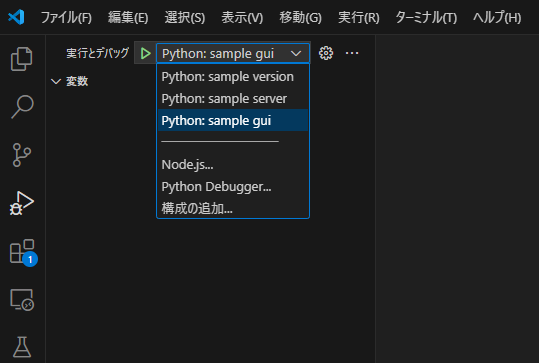

  • Run the project.

'image'

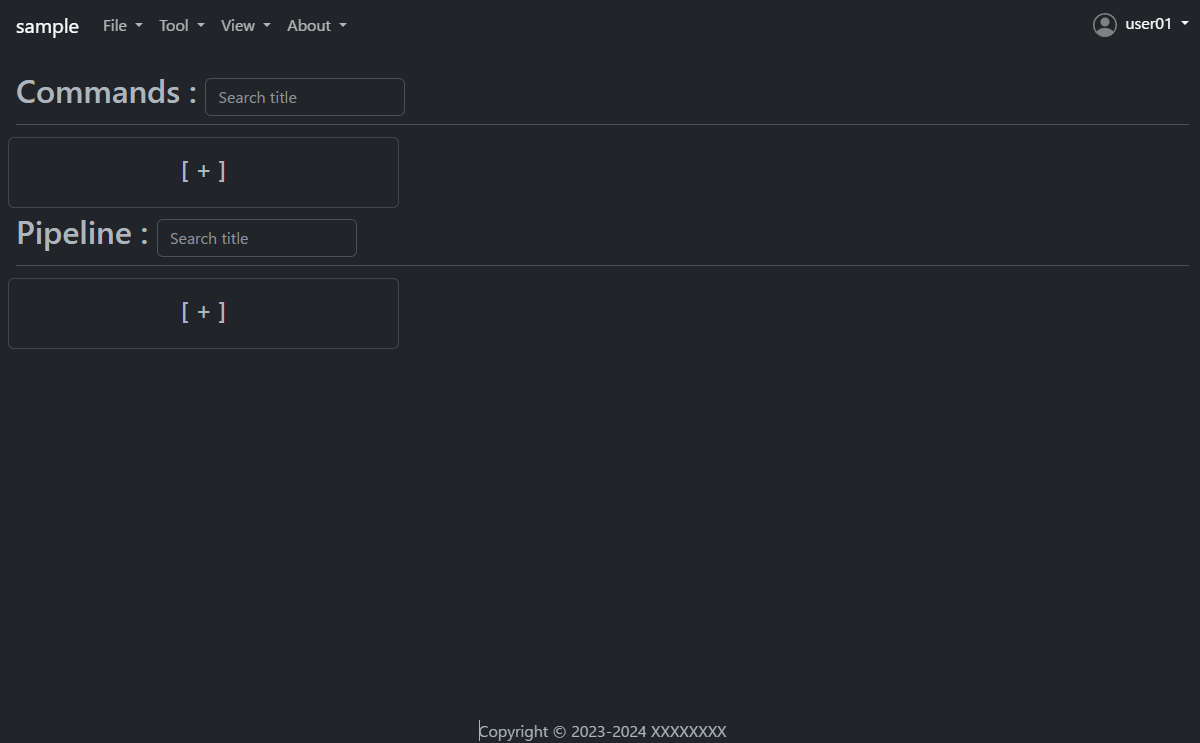

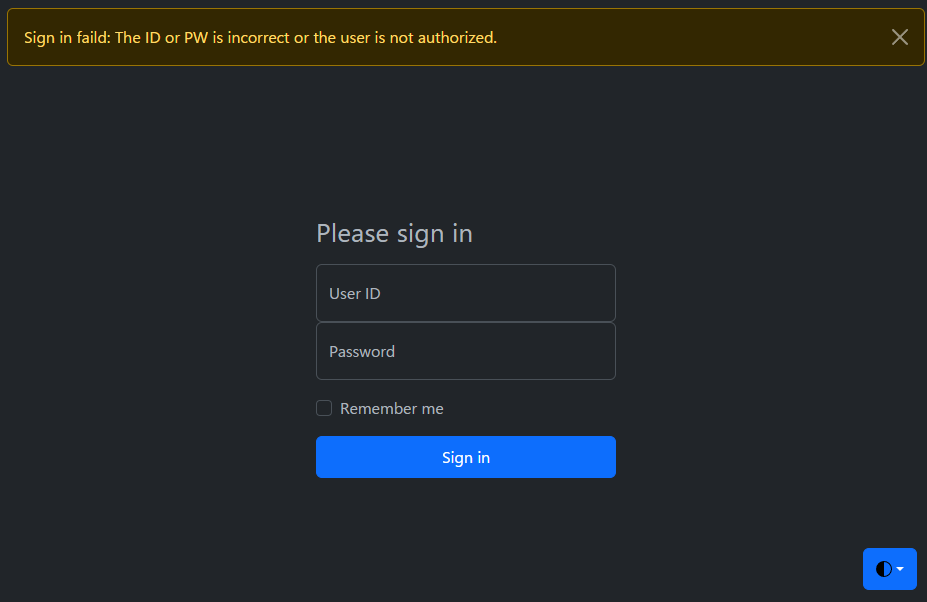

  • The localhost web screen will open.

'image'

  • Enter user01 / user01 for the initial ID and PW to sign in.

  • Using this web screen, you can easily execute the commands implemented in cmdbox.

'image'

  • Let's look at the command to get a list of files as an example.

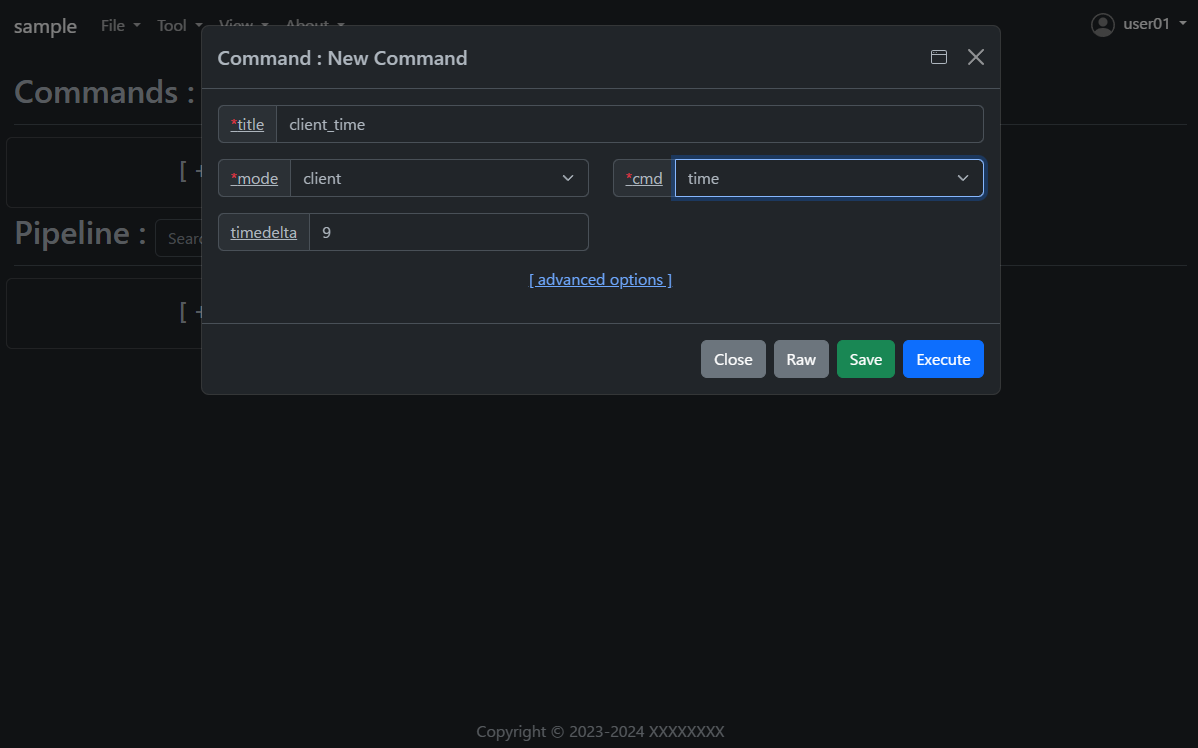

  • Press the plus button under Commands to open the Add dialog.

  • Then enter the following.

'image'

  • Press the Save button once and then press the Execute button.

  • The results of the command execution are displayed.

'image'

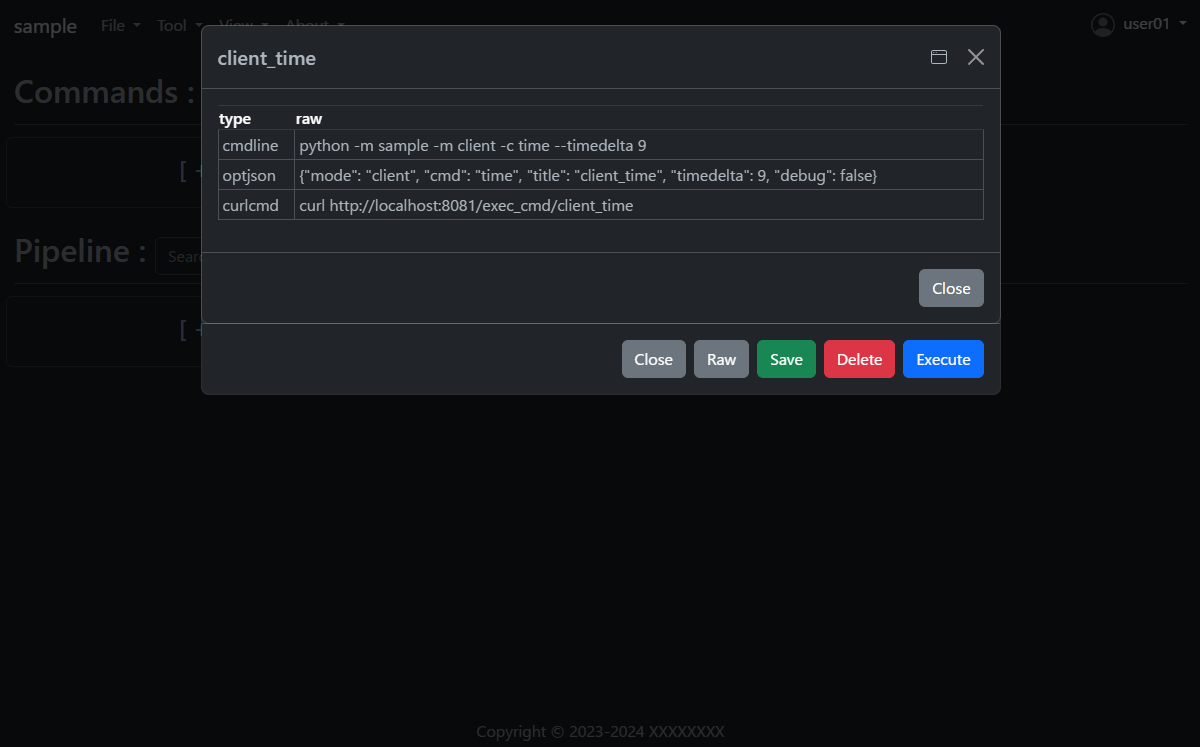

  • Open the saved client_time and press the Raw button.

  • You will see how to execute the same command on the command line; the RESTAPI URL is also displayed.

'image'

How to implement a new command using cmdbox

  • Under the sample/app/features/cli folder, you will find an implementation of the sample_client_time mentioned earlier.

  • The implementation is as follows. (Slightly abbreviated display)

  • Create the following code and save it in the sample/app/features/cli folder.

  • See sample_client_time.py .

from cmdbox.app import common, feature
from cmdbox.app.commons import validator
from cmdbox.app.options import Options
from typing import Dict, Any, Tuple, Union, List
import argparse
import datetime
import logging


class ClientTime(feature.Feature, validator.Validator):
    def get_mode(self) -> Union[str, List[str]]:
        """
        この機能のモードを返します

        Returns:
            Union[str, List[str]]: モード
        """
        return "client"

    def get_cmd(self):
        """
        この機能のコマンドを返します

        Returns:
            str: コマンド
        """
        return 'time'

    def get_option(self):
        """
        この機能のオプションを返します

        Returns:
            Dict[str, Any]: オプション
        """
        return dict(
            use_redis=self.USE_REDIS_FALSE, nouse_webmode=False, use_agent=False,
            description_ja="クライアント側の現在時刻を表示します。",
            description_en="Displays the current time at the client side.",
            choice=[
                dict(opt="timedelta", type=Options.T_INT, default=9, required=False, multi=False, hide=False, choice=None,
                        description_ja="時差の時間数を指定します。",
                        description_en="Specify the number of hours of time difference."),
            ])

    @validator.apprun_check
    def apprun(self, logger:logging.Logger, args:argparse.Namespace, tm:float, pf:List[Dict[str, float]]=[]) -> Tuple[int, Dict[str, Any], Any]:
        """
        この機能の実行を行います

        Args:
            logger (logging.Logger): ロガー
            args (argparse.Namespace): 引数
            tm (float): 実行開始時間
            pf (List[Dict[str, float]]): 呼出元のパフォーマンス情報

        Returns:
            Tuple[int, Dict[str, Any], Any]: 終了コード, 結果, オブジェクト
        """
        tz = datetime.timezone(datetime.timedelta(hours=args.timedelta))
        dt = datetime.datetime.now(tz)
        ret = dict(success=dict(data=dt.strftime('%Y-%m-%d %H:%M:%S')))
        common.print_format(ret, args.format, tm, args.output_json, args.output_json_append, pf=pf)
        if 'success' not in ret:
            return self.RESP_WARN, ret, None
        return self.RESP_SUCCESS, ret, None

  • If you want to implement server-side processing, please refer to `sample_server_time`.

  • You can also add commands to be executed on the server side.

  • The commands are sent to the server via Redis.

  • This mechanism allows multiple servers to process the data, thereby increasing throughput.

  • See sample_server_time .

from cmdbox.app import common, client, feature
from cmdbox.app.commons import redis_client, validator
from cmdbox.app.options import Options
from pathlib import Path
from typing import Dict, Any, Tuple, Union, List
import argparse
import datetime
import logging


class ServerTime(feature.Feature, validator.Validator):
    def get_mode(self) -> Union[str, List[str]]:
        """
        この機能のモードを返します

        Returns:
            Union[str, List[str]]: モード
        """
        return "server"

    def get_cmd(self):
        """
        この機能のコマンドを返します

        Returns:
            str: コマンド
        """
        return 'time'

    def get_option(self):
        """
        この機能のオプションを返します

        Returns:
            Dict[str, Any]: オプション
        """
        return dict(
            use_redis=self.USE_REDIS_TRUE, nouse_webmode=False, use_agent=False,
            description_ja="サーバー側の現在時刻を表示します。",
            description_en="Displays the current time at the server side.",
            choice=[
                dict(opt="host", type=Options.T_STR, default=self.default_host, required=True, multi=False, hide=True, choice=None,
                        description_ja="Redisサーバーのサービスホストを指定します。",
                        description_en="Specify the service host of the Redis server."),
                dict(opt="port", type=Options.T_INT, default=self.default_port, required=True, multi=False, hide=True, choice=None,
                        description_ja="Redisサーバーのサービスポートを指定します。",
                        description_en="Specify the service port of the Redis server."),
                dict(opt="password", type=Options.T_PASSWD, default=self.default_pass, required=True, multi=False, hide=True, choice=None,
                        description_ja="Redisサーバーのアクセスパスワード(任意)を指定します。省略時は `password` を使用します。",
                        description_en="Specify the access password of the Redis server (optional). If omitted, `password` is used."),
                dict(opt="svname", type=Options.T_STR, default=self.default_svname, required=True, multi=False, hide=True, choice=None,
                        description_ja="サーバーのサービス名を指定します。省略時は `server` を使用します。",
                        description_en="Specify the service name of the inference server. If omitted, `server` is used."),
                dict(opt="timedelta", type=Options.T_INT, default=9, required=False, multi=False, hide=False, choice=None,
                        description_ja="時差の時間数を指定します。",
                        description_en="Specify the number of hours of time difference."),
                dict(opt="retry_count", type=Options.T_INT, default=3, required=False, multi=False, hide=True, choice=None,
                        description_ja="Redisサーバーへの再接続回数を指定します。0以下を指定すると永遠に再接続を行います。",
                        description_en="Specifies the number of reconnections to the Redis server.If less than 0 is specified, reconnection is forever."),
                dict(opt="retry_interval", type=Options.T_INT, default=5, required=False, multi=False, hide=True, choice=None,
                        description_ja="Redisサーバーに再接続までの秒数を指定します。",
                        description_en="Specifies the number of seconds before reconnecting to the Redis server."),
                dict(opt="timeout", type=Options.T_INT, default="15", required=False, multi=False, hide=True, choice=None,
                        description_ja="サーバーの応答が返ってくるまでの最大待ち時間を指定。",
                        description_en="Specify the maximum waiting time until the server responds."),
            ])

    @validator.apprun_check
    def apprun(self, logger:logging.Logger, args:argparse.Namespace, tm:float, pf:List[Dict[str, float]]=[]) -> Tuple[int, Dict[str, Any], Any]:
        """
        この機能の実行を行います

        Args:
            logger (logging.Logger): ロガー
            args (argparse.Namespace): 引数
            tm (float): 実行開始時間
            pf (List[Dict[str, float]]): 呼出元のパフォーマンス情報

        Returns:
            Tuple[int, Dict[str, Any], Any]: 終了コード, 結果, オブジェクト
        """
        cl = client.Client(logger, redis_host=args.host, redis_port=args.port, redis_password=args.password, svname=args.svname)
        ret = cl.redis_cli.send_cmd(self.get_svcmd(), [str(args.timedelta)],
                                    retry_count=args.retry_count, retry_interval=args.retry_interval, timeout=args.timeout)
        common.print_format(ret, args.format, tm, args.output_json, args.output_json_append, pf=pf)
        if 'success' not in ret:
            return self.RESP_WARN, ret, None
        return self.RESP_SUCCESS, ret, None

    def is_cluster_redirect(self):
        """
        クラスター宛のメッセージの場合、メッセージを転送するかどうかを返します

        Returns:
            bool: メッセージを転送する場合はTrue
        """
        return False

    def svrun(self, data_dir:Path, logger:logging.Logger, redis_cli:redis_client.RedisClient, msg:List[str],
              sessions:Dict[str, Dict[str, Any]]) -> int:
        """
        この機能のサーバー側の実行を行います

        Args:
            data_dir (Path): データディレクトリ
            logger (logging.Logger): ロガー
            redis_cli (redis_client.RedisClient): Redisクライアント
            msg (List[str]): 受信メッセージ
            sessions (Dict[str, Dict[str, Any]]): セッション情報

        Returns:
            int: 終了コード
        """
        td = 9 if msg[2] == None else int(msg[2])
        tz = datetime.timezone(datetime.timedelta(hours=td))
        dt = datetime.datetime.now(tz)
        ret = dict(success=dict(data=dt.strftime('%Y-%m-%d %H:%M:%S')))
        redis_cli.rpush(msg[1], ret)
        return self.RESP_SUCCESS

    def edgerun(self, opt, tool, logger, timeout, prevres = None):
        """
        この機能のエッジ側の実行を行います

        Args:
            opt (Dict[str, Any]): オプション
            tool (edge.Tool): 通知関数などedge側のUI操作を行うためのクラス
            logger (logging.Logger): ロガー
            timeout (int): タイムアウト時間
            prevres (Any): 前コマンドの結果。pipeline実行の実行結果を参照する時に使用します。

        Yields:
            Tuple[int, Dict[str, Any]]: 終了コード, 結果
        """
        status, res = tool.exec_cmd(opt, logger, timeout, prevres)
        tool.notify(res)
        yield 1, res

  • Open the file .sample/extensions/features.yml. The file should look something like this.

  • This file specifies where new commands are to be read.

  • For example, if you want to add a package to read, add a new package and prefix to features.cli.

  • Note that features.web can be used to add a new web screen.

  • If you only want to call commands added in features.cli via RESTAPI, no additional implementation is needed in features.web.

  • There are other items that can be set in addition to the above, please refer to Features for details.

features:
    cli:
        - package: sample.app.features.cli
          prefix: sample_
    web:
        - package: sample.app.features.web
          prefix: sample_web_

  • The following files should also be known when using commands on the web screen or RESTAPI.

  • Open the file .sample/extensions/user_list.yml. The file should look something like this.

  • This file manages the users and groups that are allowed Web access and their rules.

  • The rule of the previous command is allow for users in the user group in cmdrule.rules.

  • There are other items that can be set in addition to the above, please refer to Authentication for details.

users:
- uid: 1
  name: admin
  password: XXXXXXXXXXXXXX
  hash: plain
  groups: [admin]
  email: admin@aaa.bbb.jp
  home: /.users/admin
- uid: 2
  name: develop
  password: XXXXXXXXXXXXXX
  hash: plain
  groups: [develop]
  email: develop@aaa.bbb.jp
  home: /.users/develop
- uid: 3
  name: master
  password: XXXXXXXXXXXXXX
  hash: plain
  groups: [master]
  email: master@aaa.bbb.jp
  home: /.users/master
- uid: 101
  name: user01
  password: XXXXXXXXXXXXXX
  hash: md5
  groups: [user]
  email: user01@aaa.bbb.jp
  home: /.users/user01
groups:
- gid: 1
  name: admin
  home: /.groups/admin
- gid: 2
  name: develop
  home: /.groups/develop
- gid: 3
  name: master
  home: /.groups/master
- gid: 4
  name: guest
  home: /.groups/guest
- gid: 101
  name: user
  home: /.groups/user
cmdrule:
  policy: deny
  rules:
  - groups: [admin]
    coercion:
      fwpath: "['/.users','/.groups']"
      from_fwpath: "['/.users','/.groups']"
      to_fwpath: "['/.users','/.groups']"
    rule: allow
pathrule:
  policy: deny
  rules:
  - groups:
    - admin
    - develop
    - master
    paths: [/]
    rule: allow

How to edit users and groups in Web mode

  • Open the http://localhost:8081/gui screen in the browser.

  • Enter admin / admin for the initial ID and PW to sign in.

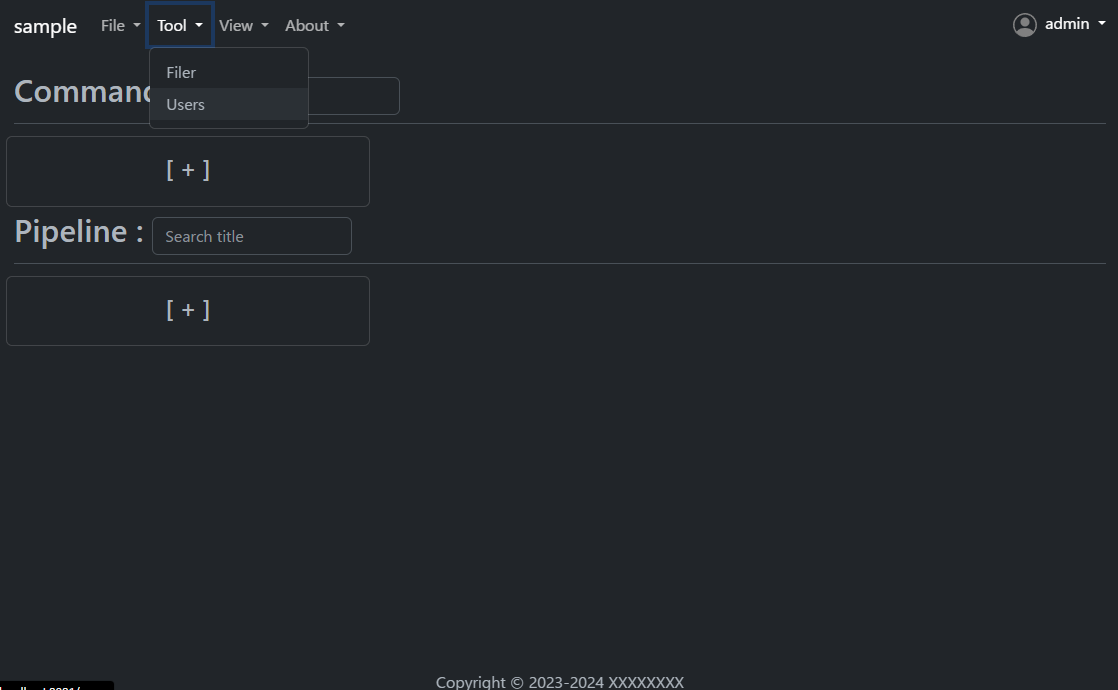

  • Select Users from the Tool menu.

'image'

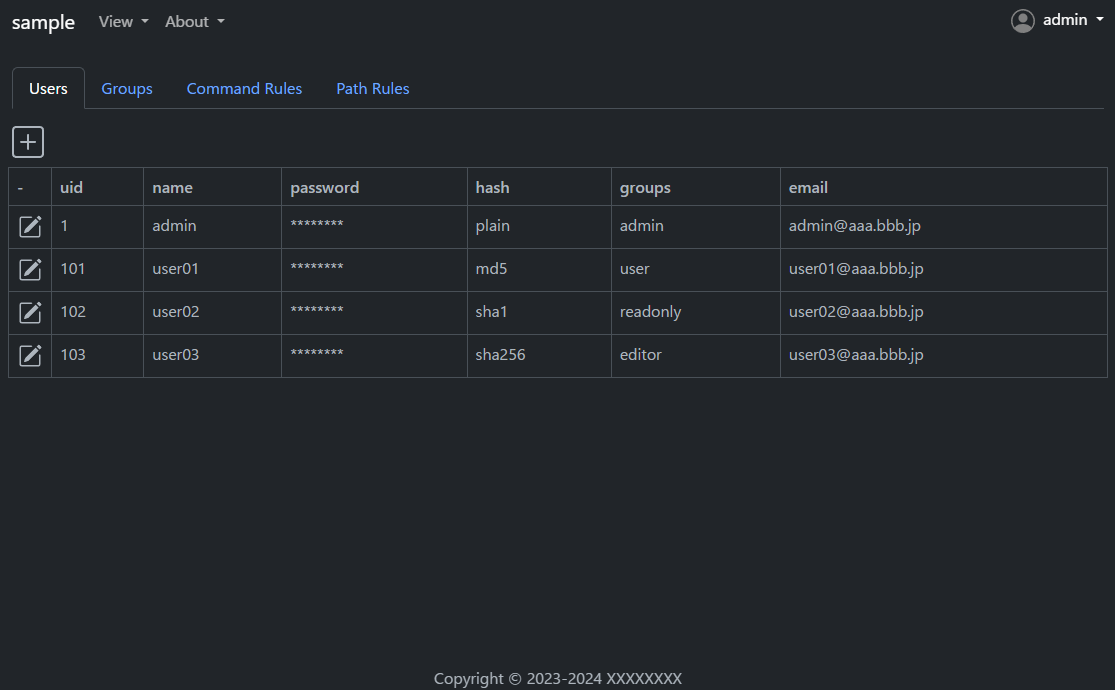

  • Users and groups can be edited on this screen.

  • Command rules and path rules can also be checked.

'image'

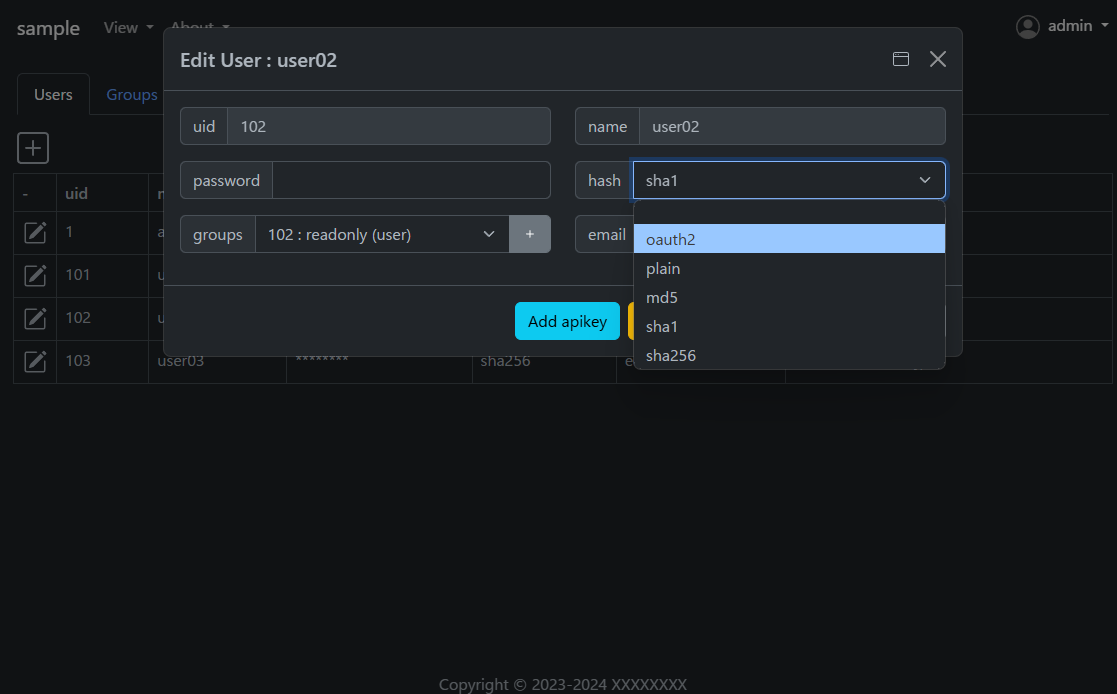

  • If you specify oauth2 in the hash field, you can set the user to have OAuth2 authentication enabled.

'image'

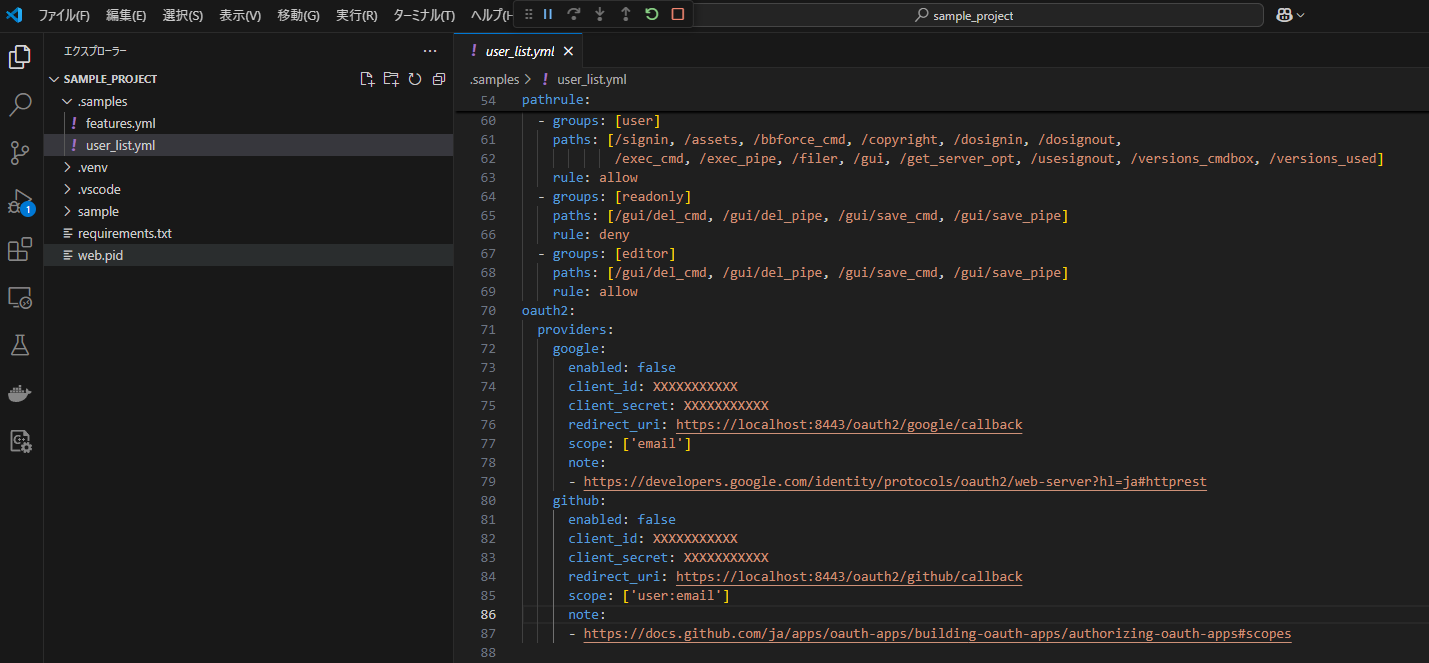

  • To enable oauth2 in the cmdbox, set the oauth2 entry in .sample/user_list.yml.

  • Below is an example of Google and GitHub settings.

  • Set oauth2/providers/google/enabled and oauth2/providers/github/enabled and oauth2/providers/azure/enabled to true.

  • The client_id and client_secret should be obtained and set in each provider's configuration screen.

  • For Azure, the tenant_id must also be set.

  • The redirect_uri should be set to accept in each provider's configuration screen.

  • The scope is basically unchanged.

'image'

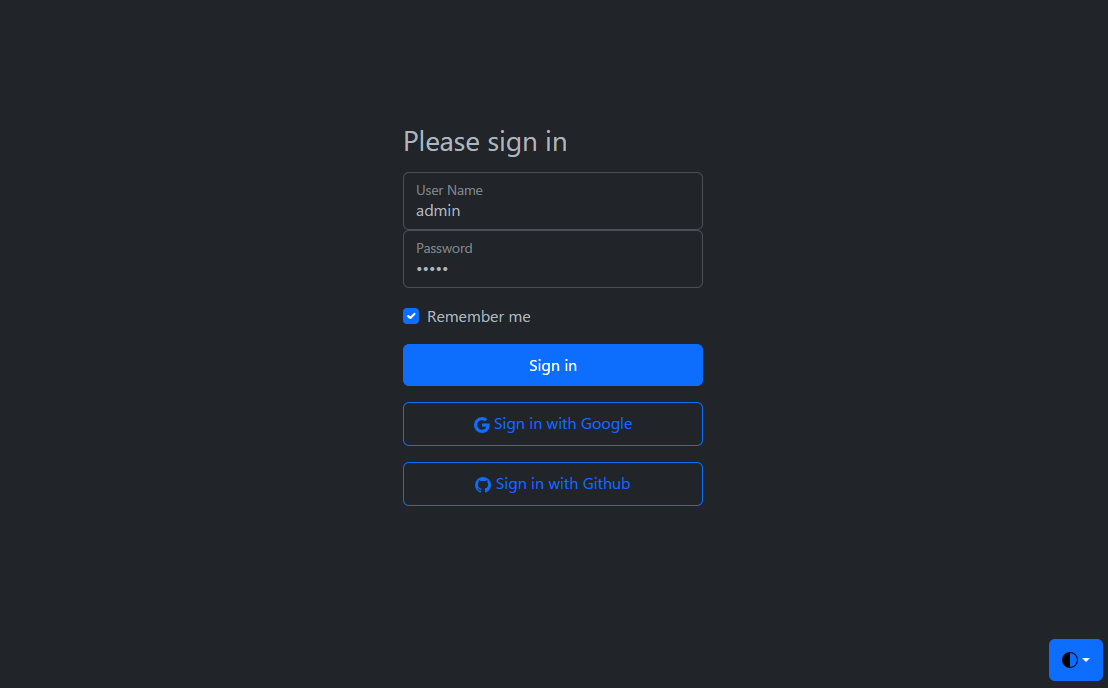

  • Restart web mode and open http://localhost:8081/gui to see the OAuth2 authentication button.

'image'
